BIN LIFTING SYSTEMS: HIGH LEVEL TIP - SIDE & REAR

TLL360 & TLL1280



The TLL bin lift range provides a practical solution to installing container collection functionality to existing and
new recycling collection bodies.



Suitable for side & rear loading applications, the TLL360 and TLL1280 offer robust build & safe operation synonymous with the Terberg brand. Both lifters are configured with extensive efficiency saving & safety enhancing features.



  • Integrated and compliant Emergency Stop functionality that meets directive BS EN 13850-1 standards.
  • ‘Plug & Play’ electro-hydraulic components.
  • Fixed two-handed control station for increased operator safety.
  • Available in several height options for side mounted and rear mounted applications.
  • Controlled and safe lifting cycle throughout operation.
  • Incorporated ‘anti-shake’ feature.
  • Flexible ‘bolt-on’ lifting solution capable of lifting EN compliant containers ranging from 120ltrs to 1280ltrs.
  • “Lifter raised” warning for when the park brake is released.
  • Compatible with Terberg dynamic weighing and RFID systems.
  • Smooth operation designed to minimise ‘bin bounce’ and provide accurate data recording.

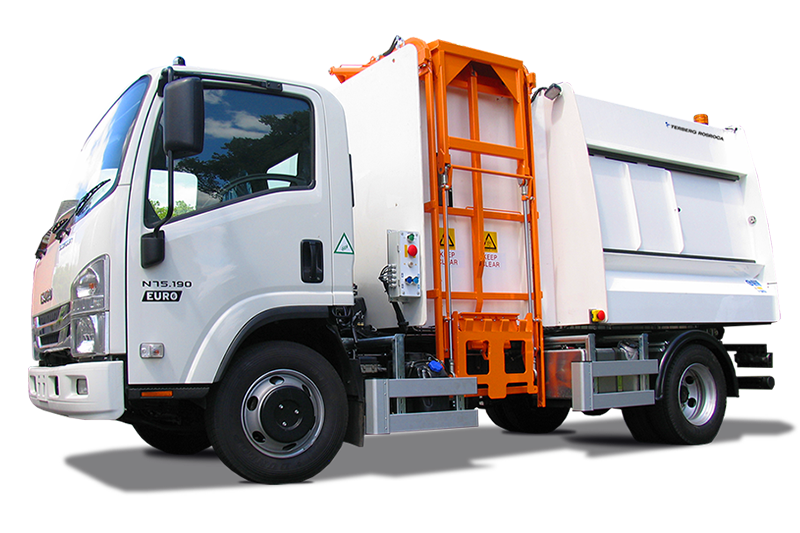

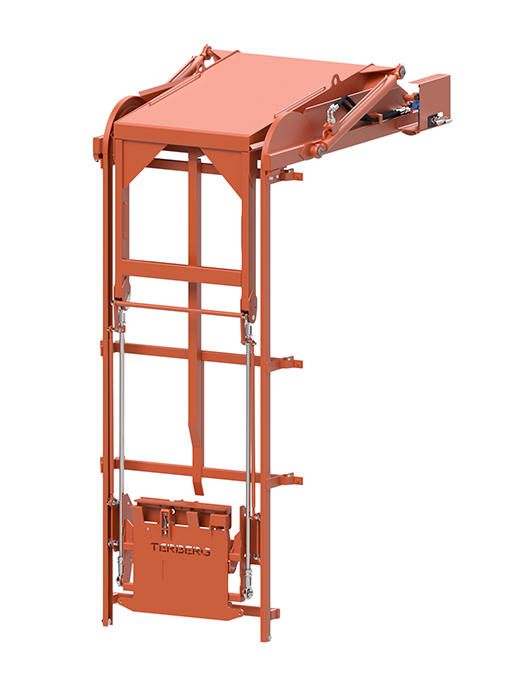

TLL360

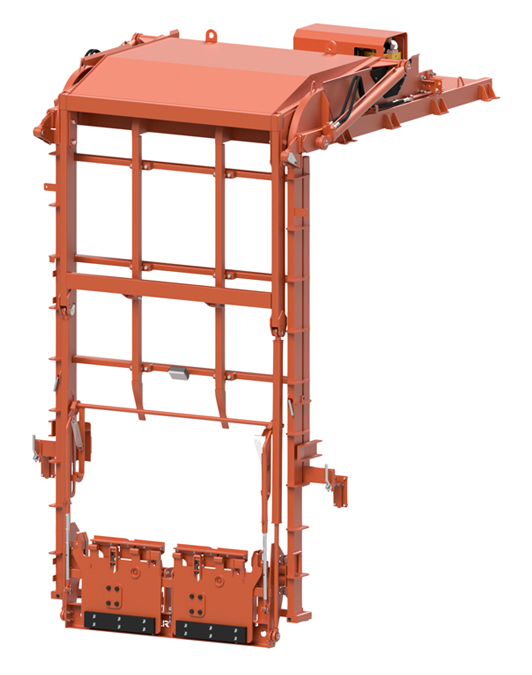

TLL1280

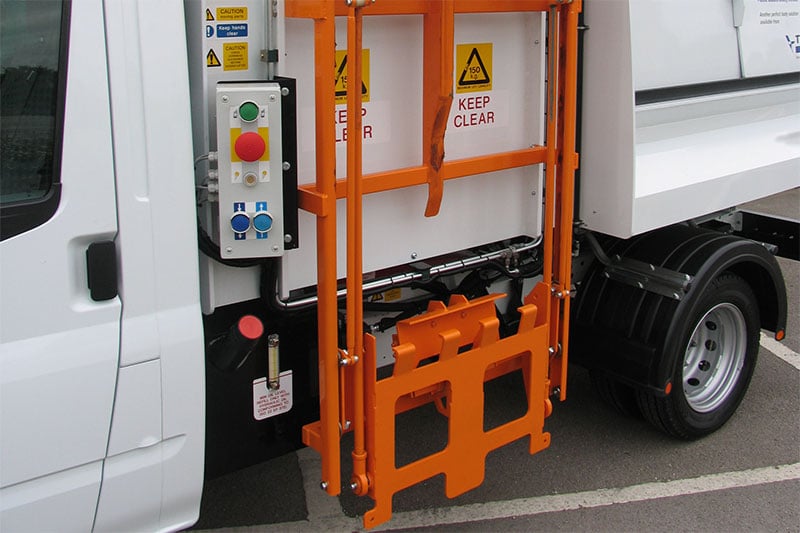

TLL360 SPECIFICATIONS





  • Cycle Time: 24 Seconds
  • Operation Mode: Manual
  • Handling Capacity: 150 kg
  • Weight: 335 kg
  • Noise Level: <65 db(A)
  • Hydraulic Requirements: 12.5-15l/min. 100 Bar
  • Mounting Method: N/A
  • Auto-Gather: N/A
  • Safety: CE Machinery Directive & EN1501-5
  • Diagnostic Display: No

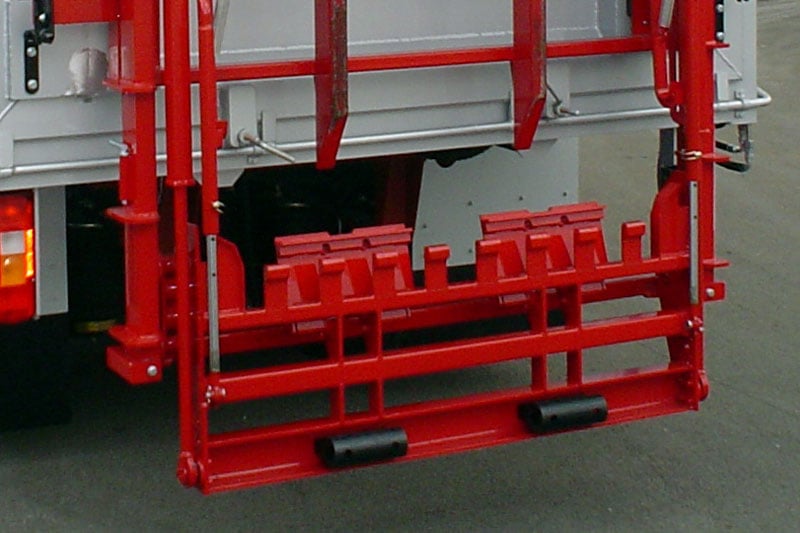

TLL1280 SPECIFICATIONS





  • Cycle Time: 24 Seconds (trade) 17 Seconds (domestic)
  • Operation Mode: Manual
  • Handling Capacity: 500 kg
  • Weight: 1035 kg
  • Noise Level: <65 db(A)
  • Hydraulic Requirements: 25-32l/min. 200 Bar
  • Mounting Method: N/A
  • Auto-Gather: Option
  • Safety: CE Machinery Directive & EN1501-5
  • Diagnostic Display: No
