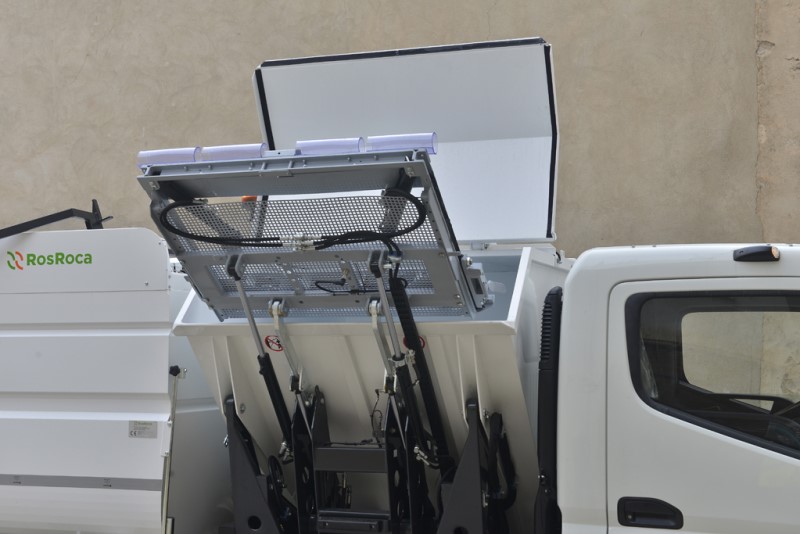

ORUS TP COMBI TD: Multi-Fraction Compact Satellite RCV

The Orus TP Combi TD is a versatile and efficient compact satellite waste collection vehicle, engineered for optimal multi-stream waste management.

It features a two-compartment compaction system, available in flexible configurations of either a 50/50 or 70/30 split, allowing for the effective separation and collection of different waste types.

In addition to these rear compartments, the TP Combi TD is equipped with a separate side-loading front compartment, specifically designed for the collection of organic waste or glass. This front compartment, with a capacity of 1.5 m³, operates without compaction and does not include a bin lift, making it ideal for handling materials that require gentle collection



  • Made from steel or aluminium, allowing us to increase the maximum legal payload.
  • Option to unload into a supply vehicle or static open containers.
  • Numerous optional features available for greater collection efficiency such as pre-installation of the weighing system, RFID identification and reader
    systems, etc.
  • A leakproof watertight body, an essential requirement for organic waste collections.
  • Multi-purpose models designed to collect multiple fractions.
  • They can be mounted on an electric chassis.
  • Outstanding manoeuvrability in narrow and/or confined spaces.
Compactador de resíduos ORUS Twin Pack Combi TD com carregamento posterior por satélite para recolha de resíduos
SPECIFICATIONS

  • Compaction: 3:1
  • Fractions: 3
  • Steel: Yes
  • Aluminium: No
  • Rear Bin Lift: Yes
  • Side Bin Lift: Orus TP Combi TD: No, Orus TP Combi TD3: Yes
  • Containers: Orus TP Combi TD: 120-750, Orus TP Combi TD3: 120-750, 120-750
  • Steel pannier, door-to-door: No
  • Fabric pannier, door-to-door: Yes
  • Side Door: Yes
  • Footboard(s): 1/2
  • Capacity: Orus TP Combi TD: 1.5+50/50, 1.5+70/30
  • Capacity: Orus TP Combi TD3: 3.5+50/50, 3.5+70/30
  • GVW Chassis: 7.5 - 10t
