BIN LIFTING SYSTEMS: SPECIALIST AND MULTIPURPOSE

OmniTRADE

Flexible mounting, efficent operation and genuine open back loading



Olympus EuroTRADE

Integrated RCV and bin lift system with great flexibilty for a range of containers



Olympus EuroTRADE WLS

WLS feature enhances EuroTRADE functionality to offer skip handling abilities



TGV

Highly efficient lift system for pocket arm equipped containers



OmniGV

Robost solution, ideal in harsh environments to handle a variety of containers and skips

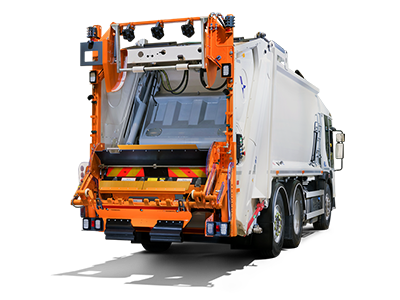

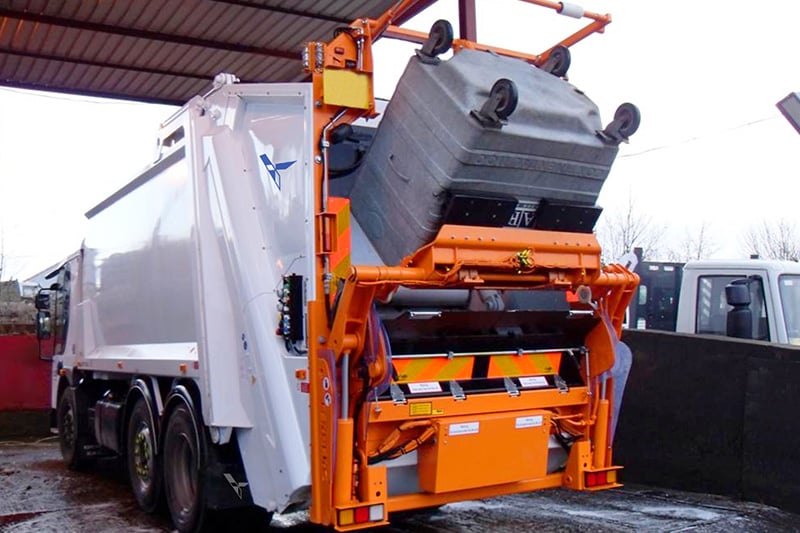

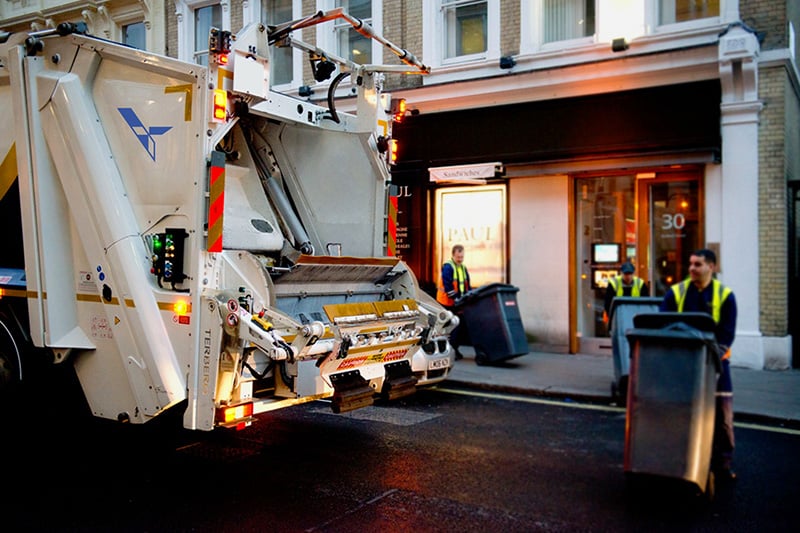

OmniTRADE

4 wheel container recognition, Auto Gather, Single Button Tip and Intelligent Speed Selection all comes as standard with the OmniTRADE commercial bin lift to provide you with a superbly engineered, fully featured and flexible bin lift system geared towards efficiency and safety.

Available as a one piece lift with its own integral frame or as a two piece bin lift system for mounting onto a suitable frame the OmniTRADE gives you mounting flexibility, width options are available too from 2.2m to 2.5m wide. The OmniTRADE’s unique, patented hydraulic system ensures a smooth, controlled lifting whilst its minimal overhang and Centre of Gravity projection help minimise rear axle overloading.

Hand loading of bulky items is a breeze too, as the full width hopper plate lowers with minimal effort, covering the bin lift comb to provide genuine ‘open back’ hand loading. Maintenance and whole life costs are kept to a minimum through the use of ultrasonic sensors, low maintenance bearings and stainless steel axles.

The OmniTRADE is ideal for commercial charge by weight operations and is designed to integrate perfectly with our Dynamic Weighing and RFiD systems. Accurate, repeatable and certified results are acheived easily thanks to OmniTRADE's smooth lift operation that minimises ‘bin bounce’ whilst the vertical initial lift provides a great 'weighing window’ for ease of data recording.

SPECIFICATIONS

  • Cycle Time: 2-wheel containers 6 - 7 sec. 4-wheeled 10-12 sec
  • Handling Capacity: 170kg (2 wheel) / 750kg (wheel)
  • Noise Level: < 65dB(A)
  • Mounting Method: Terberg Frame
  • Operation Mode: Manual
  • Weight: 690kg
  • Hydraulic Requirements: Ideal 40 l/min., maximum 60 l/min., 180 bar
  • Safety: CE machinery directive certification, EN 1501.1 & EN 1501.5
  • Auto-Gather: Option
  • Diagnostic Display: No

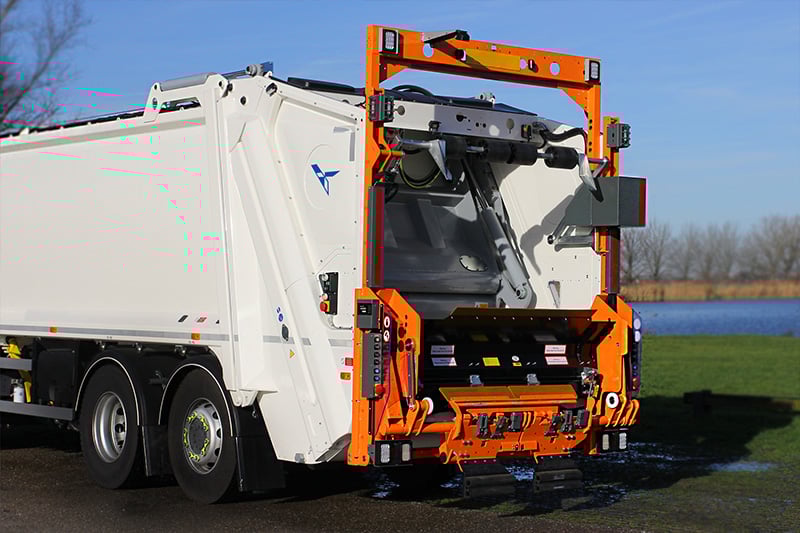

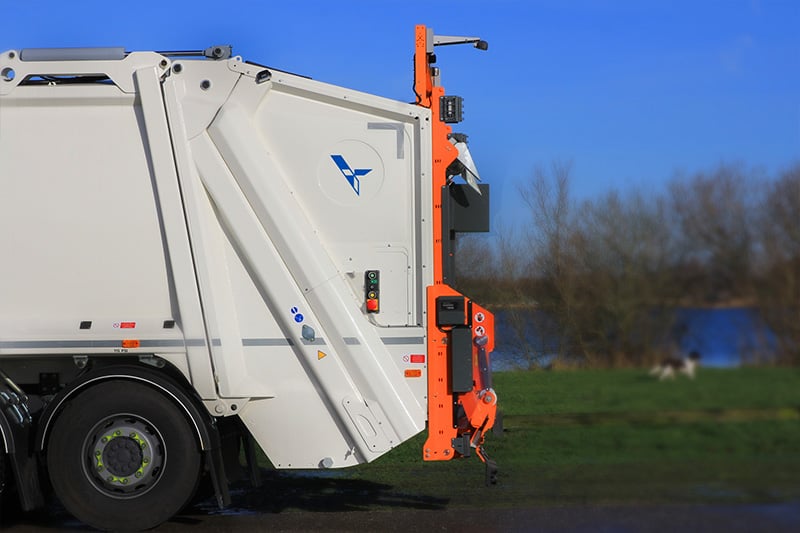

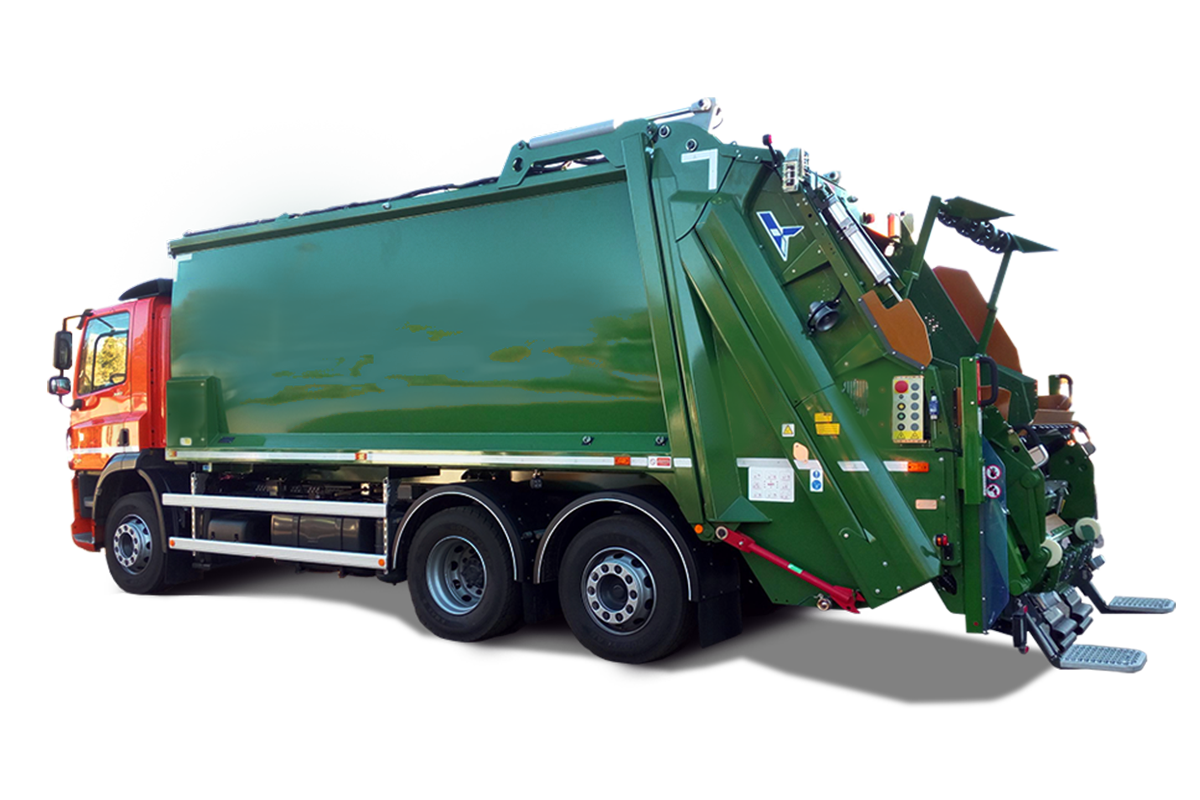

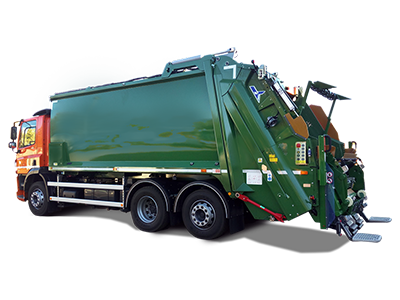

Olympus EuroTRADE

The Olympus EuroTRADE provides a class leading waste & recycling collection solution with the ability to safely handle a wide range of containers with its robust rear mounted lift system.



  • Unique geometery gives a 55° tipping angle with no 'kick out' of the container towards the operator when lifting cycle starts
  • Multifunctional bin-lift system to handle a wide variety of container sizes/ types without adjustment
  • Master/slave hydraulic system means that the bin lift comb is level every single time
  • Low manual loading height, ideal for hand loading of bulky waste
  • Binlift mounting integral to the Olympus tailgate giving a shorter overhang
  • Flexible lower chair section to support the container, dampen movement and reduce possible damage to container and binlift
SPECIFICATIONS

  • Cycle Time: 2-wheel containers 6 - 7 sec. 4-wheeled 10-12 sec
  • Handling Capacity: 170kg (2 wheel) / 750kg (wheel)
  • Noise Level: < 65dB(A)
  • Mounting Method: Integrated on Olympus tailgate
  • Operation Mode: Manual
  • Weight: 600kg
  • Hydraulic Requirements: Ideal 40 l/min., maximum 60 l/min., 180 bar
  • Safety: CE machinery directive certification, EN 1501.1 & EN 1501.5
  • Auto-Gather: Yes
  • Diagnostic Display: No

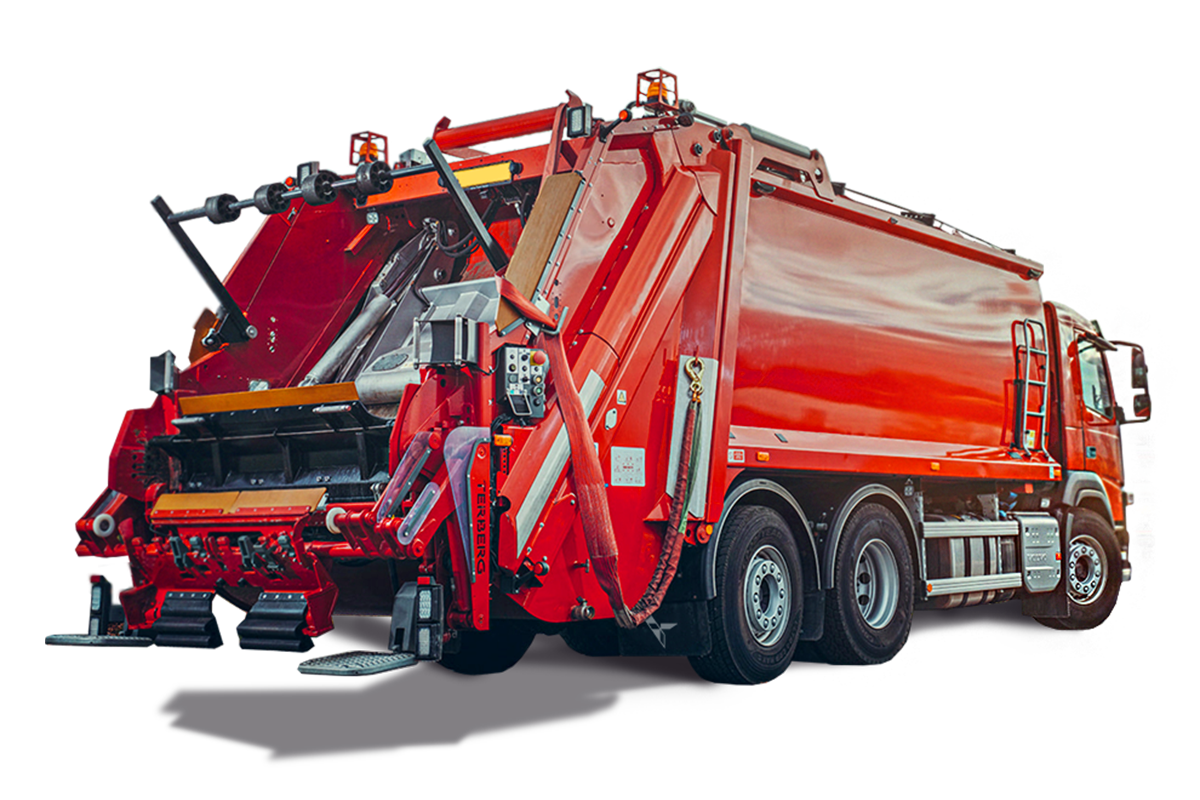

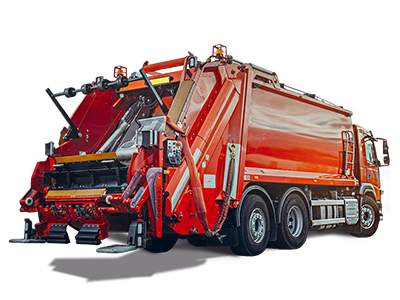

Olympus EuroTRADE WLS

Superb waste collection system with the added ability to empty recycling skips.



Contact Sales

EuroTRADE WLS

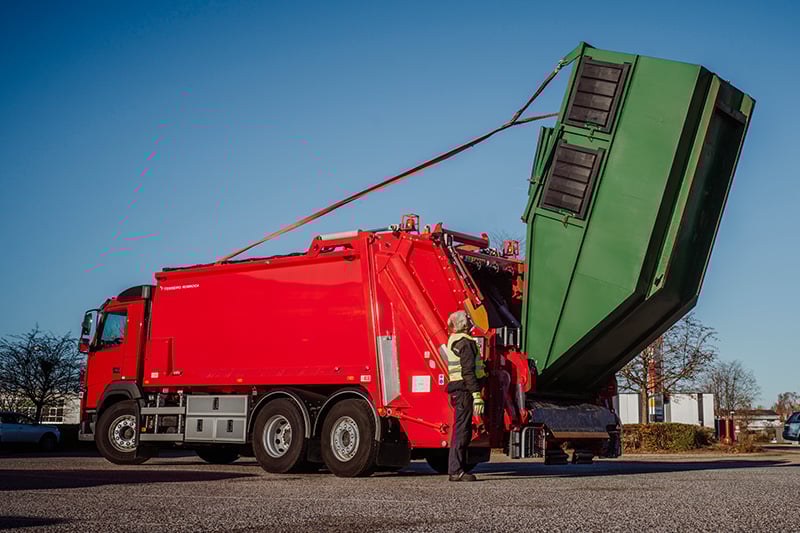

The Olympus EuroTRADE-Winch Lock and Shake (WLS) binlift expands the standard EuroTRADE's abilities and can be used to empty recycling skips and collect compressed bales of recyclable waste.

  • Unique geometery gives a 55° tipping angle with no 'kick out' of the container towards the operator when lifting cycle starts
  • Multifunctional bin-lift system to handle a wide variety of container sizes/types without adjustment
  • Master/slave hydraulic system means that the bin lift comb is level every single time
  • Winch, Lock and Shake (WLS) feature to handle recycling skips
  • Bale clamp option for compressed paper or cardboard
  • Remote control option for 4000kg capacity winch
SPECIFICATIONS

  • Cycle Time: 2-wheel containers 6 - 7 sec. 4-wheeled 10-12 sec skips 40 sec
  • Handling Capacity: 170kg (2-wheel) / 750kg (4-wheel)/2000 skip
  • Noise Level: < 65dB(A)
  • Mounting Method: Integrated on Olympus tailgate
  • Operation Mode: Manual
  • Weight: 650kg
  • Hydraulic Requirements: Ideal 40 l/min., maximum 60 l/min., 180 bar
  • Safety: CE machinery directive certification, EN 1501.1 & EN 1501.5
  • Auto-Gather: Yes
  • Diagnostic Display: No



YYYNNYY Bin Icon Strip.svg

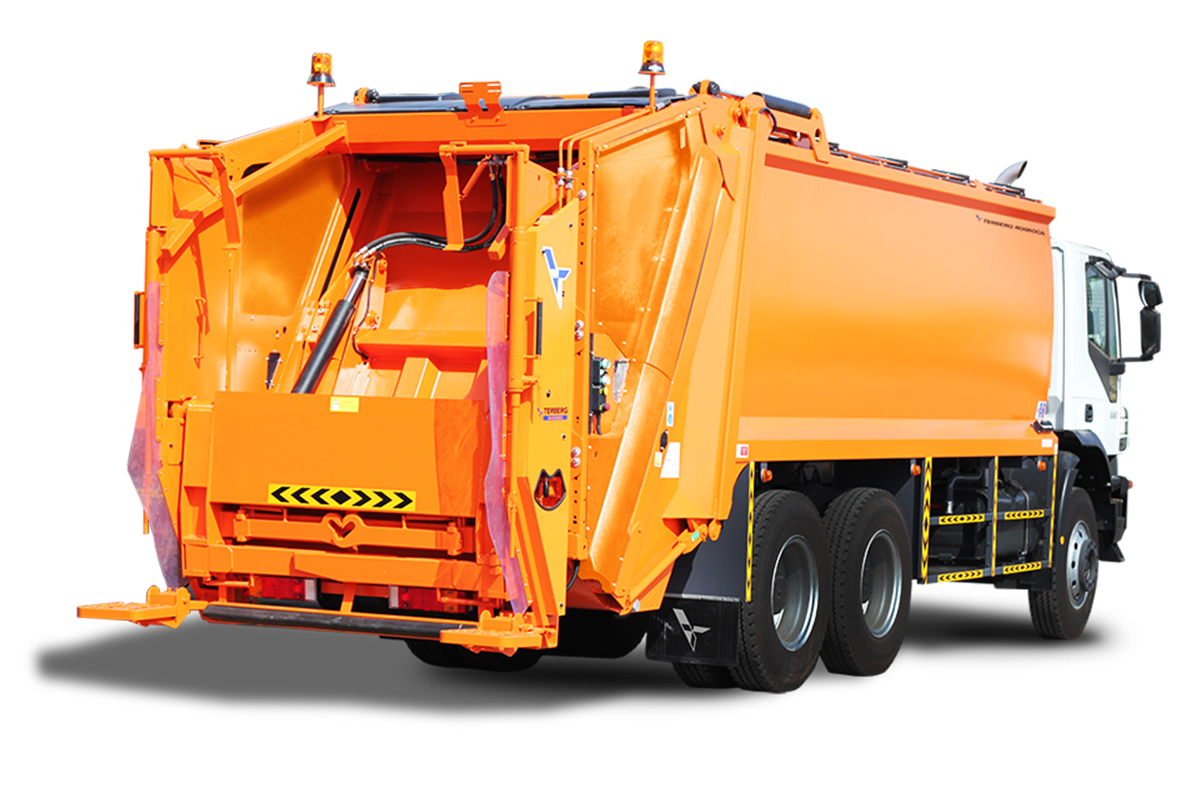

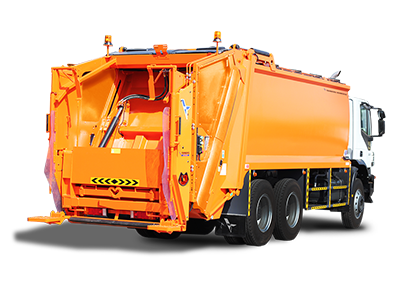

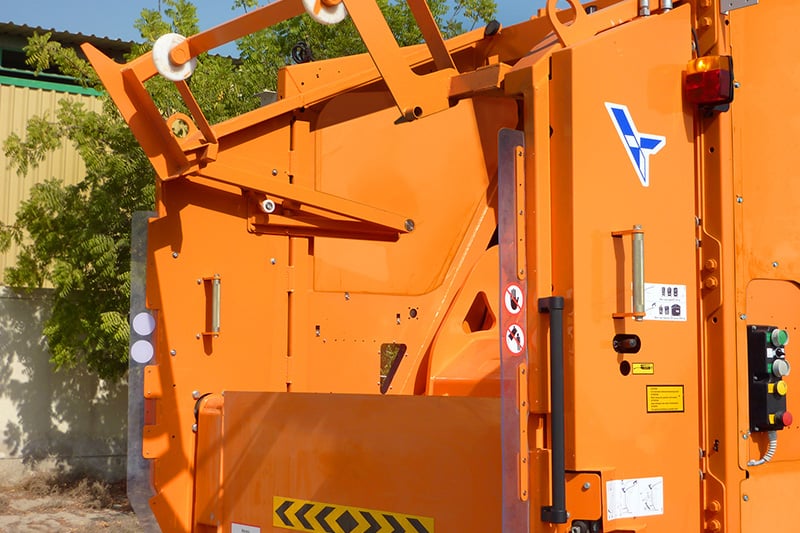

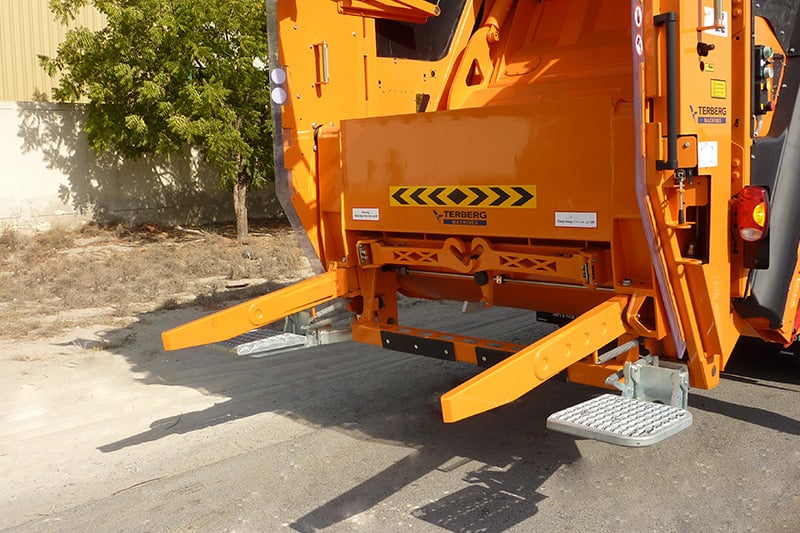

TGV

A heavy duty binlift that will handle a wide variety of containers up to 4.5m³.

The TGV is primarily designed to empty 's pocket arm containers of up to 4.5m³. With eteh addition of the optional binlift comb and DIN arms, its flexibility will deliver higher efficiency on collection rounds.Its simple and robust design make ideal for demanding environments.



  • Can empty a wide variety of containers giving increased flexibility
  • Simple but robust design makes it ideal for harsh environments with extremes of temperature and airborne particles
  • Easy to use button and lever controls for safe operation in all conditions
  • Footboards as standard in some markets
  • High hopper plate increases tailgate hopper capacity
  • Unified binlift frame gives one solution to mount all the lifting arm options for all containers. Simple and reliable.
SPECIFICATIONS

  • Cycle Time: All containers 16 sec
  • Handling Capacity: Single binlift frame for all containers, capacity 1500kg
  • Noise Level: < 65dB(A)
  • Mounting Method: Integrated on Olympus tailgate
  • Operation Mode: Manual
  • Weight: 800kg
  • Hydraulic Requirements: Ideal 40 l/min., maximum 60 l/min., 180 bar
  • Safety: CE machinery directive certification, EN 1501.1 & EN 1501.5
  • Auto-Gather: No
  • Diagnostic Display: No

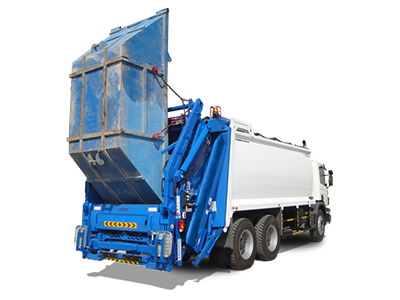

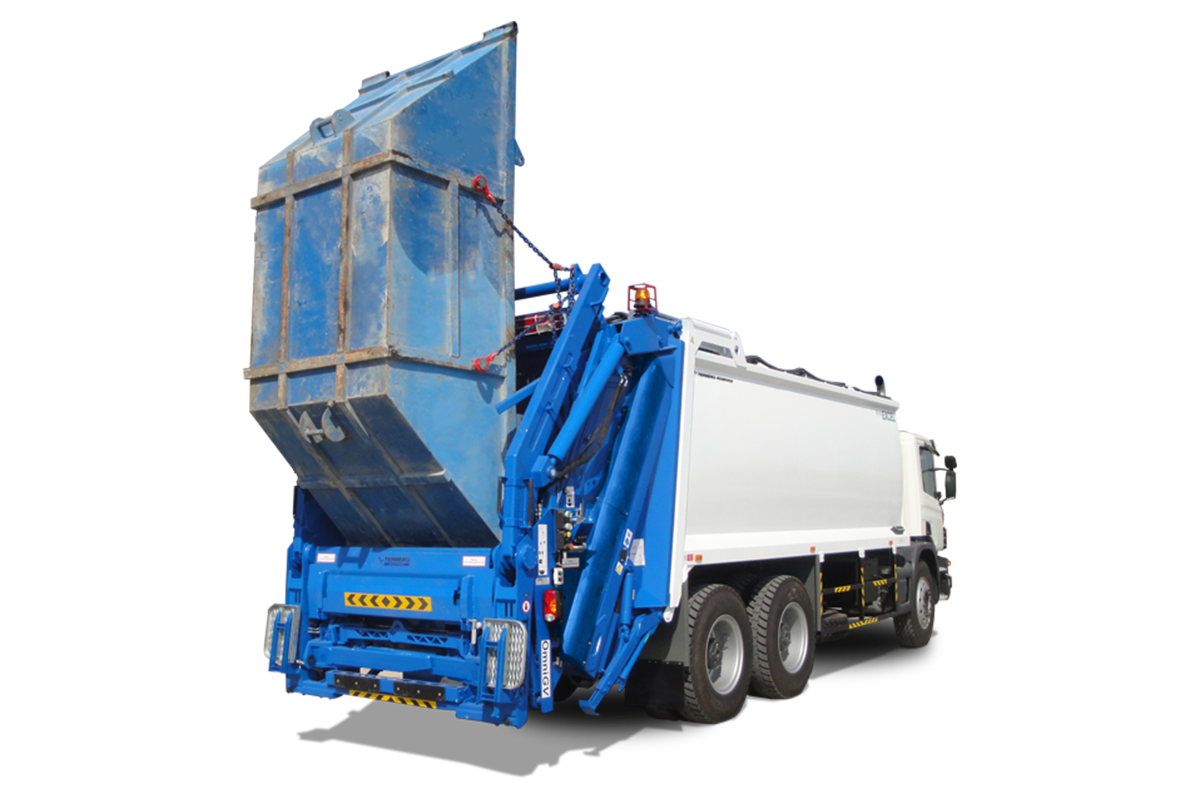

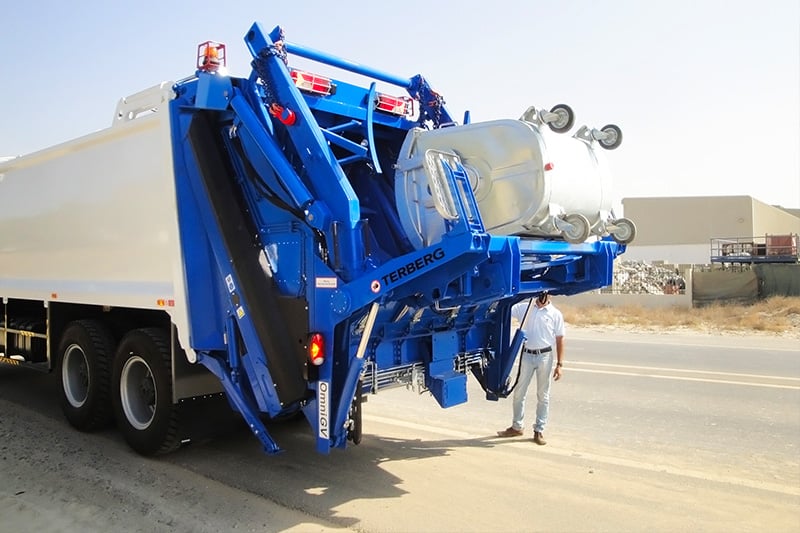

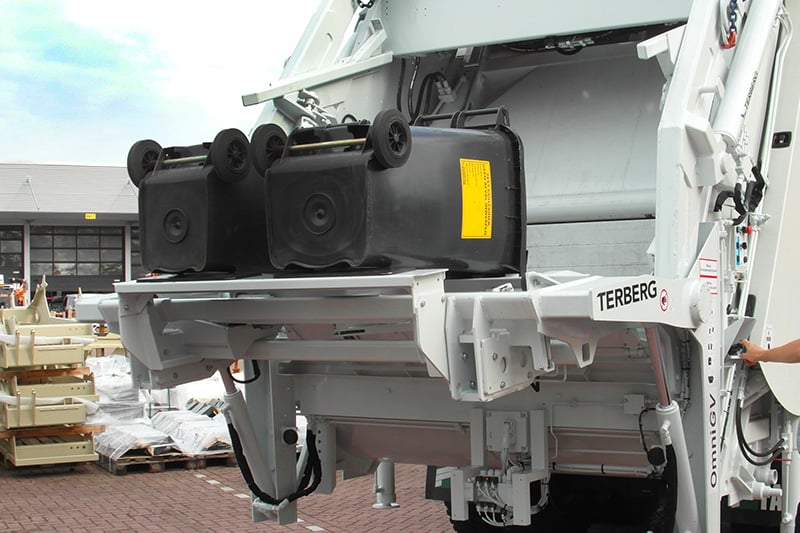

OmniGV

An extremely robust build, handles a wide range of containers, this binlift is ideal for operation in some of the harshest environments in the world.

The OmniGV’s robust, innovative design makes it perfectly suited to handling household and industrial waste regardless of the container. The multipurpose lifter is capable of handling a wide variety of containers from 120 ltr wheeled containers all the way up to 10m³ skips. The construction makes it well suited to operation in conditions with extremes of temperature, humidity and dust. Note: This product is specifically engineered for use out of Europe. OmniGV encompasses many design elements suited to overseas operations, it is therfore not wholly complaint to EN1501 norm, which is required inside Europe.



  • Offers the widest variety of container handling of any binlift in our extensive range
  • Simple but robust design makes it ideal for harsh environments with extremes of temperature and airborne particles
  • Uses Hardox steel in high wear areas to ensure long service life
  • Designed to accept Terberg Weighing and RFID
  • Easy to use button and lever controls for safe operation
  • Integrated mounting on the tailgate with optional stabiliser legs to assist when handling skips
SPECIFICATIONS

  • Cycle Time: 2-wheel containers 15 sec, 4-wheeled 15 sec, Pocket Arms 15 sec, Skips 45 sec
  • Handling Capacity: 160kg (2 wheel) / 800kg (4 wheel) / 2000kg (Pocket Arm) / 7000kg (Skips)
  • Noise Level: < 65dB(A)
  • Mounting Method: Integrated on Olympus tailgate
  • Operation Mode: Manual
  • Weight: 1500kg
  • Hydraulic Requirements: Ideal 40 l/min., maximum 60 l/min., 200 bar
  • Auto-Gather: No
  • Diagnostic Display: No
